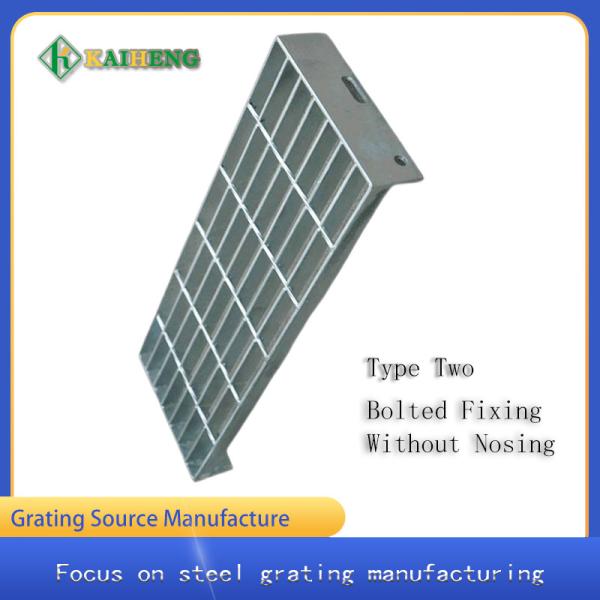

Safety Hot Dip Galvanized Steel Grated Metal Stair Treads

Name: Safety Hot Dip Galvanized Steel Grated Metal Stair Treads
Brand: Kaiheng Wire Mesh
Price: 1 USD

Safety Hot Dip Galvanized Steel Grated Metal Stair Treads Manufactures

Brand Name : Kaiheng Wire Mesh

Model Number : kh112

Certification : ISO 9001:2015

Place of Origin : Anping,Hebei,China

MOQ : negotiation

Price : real-time quotes

Payment Terms : Western Union, MoneyGram, T/T, D/A, L/C

Supply Ability : 2000㎡ per day

Delivery Time : negotiation

Packaging Details : Galvanized iron sheet binding & Wooden Pallet/Steel Pallet Or As required

name : T2 Stair Tread

color : silver white

material : carbon steel q235，zinc

surface : hot dip galvanizing

bearing bar pitch : 40mm

Width（mm） : 125,165,205,245,285,325

cross bar pitch : 10cm

Section size of flat steel（mm） : 25*3,25*5,32*5,40*5

Maximum Length（mm） : 450,750,1200,1500

performance : corrosion resistance and Load bearing

Bolt hole spacing : 45,75,75,100,100,150,150

Contact Now

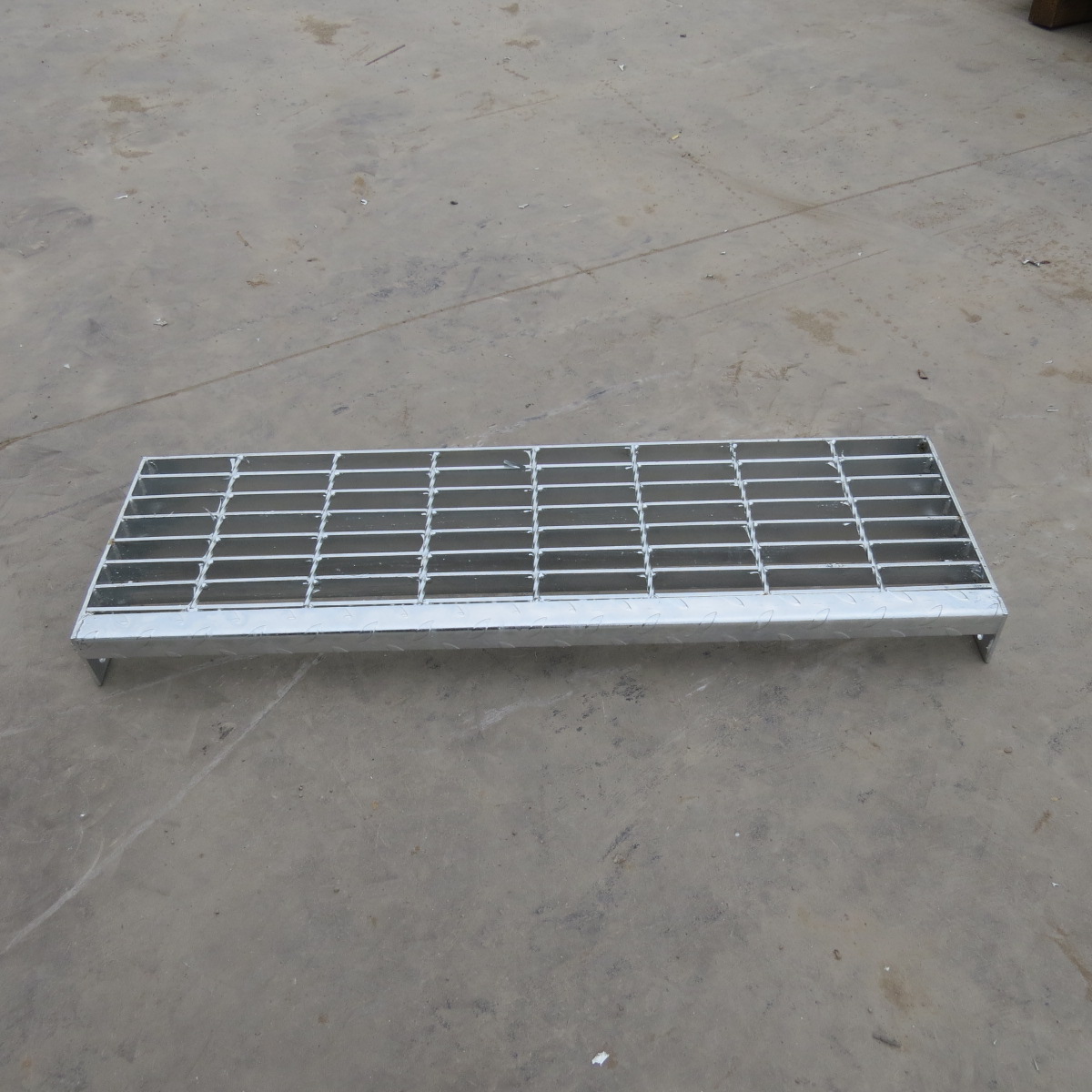

T2 Welded Fixing Without Nosing Stair Tread For Steel Ladder 30mm Bearing Bars Pitch

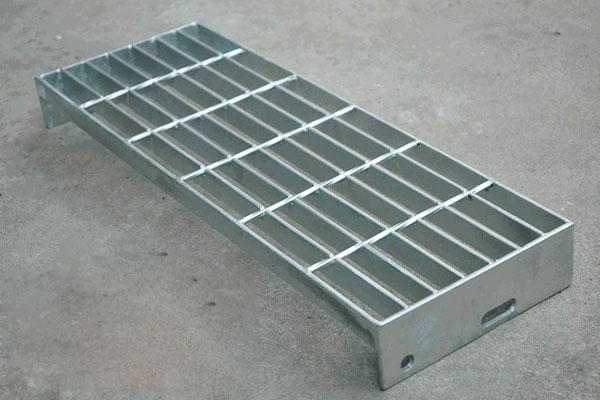

Brief introduction of T2 flat steel 40mm spacing hot-dip galvanized steel grating steps

T2 type steel ladder step plate is made of load type flat steel and fried dough twist steel by manual welding. On the side side of T2, two bolts holes are used to fix holes on each side. The center distance of bolt holes varies according to the width of the treadle. When the width of the tread is 125, 155, 185, 215, 245, 275 or 305mm, the corresponding bolt hole center distance is 45, 75, 75, 100, 100, 100, 150mm, and the flat steel spacing is 40mm. The spacing of round steel is 10cm. The models of flat steel can adopt 25 * 3, 25 * 5, 32 * 5 and 40 * 5. The corresponding step plate length is 550, 900, 1300 and 1600mm. The T2 model is fixed with bolts, which will not damage the surface zinc layer and is convenient for installation and disassembly.

Attribute table of T2 flat steel 40mm spacing hot-dip galvanized steel grating steps

name	T2 stair tread grating with bearing bars 40mm pitch
color	silver white
surface	hot dip galvanizing
material	carbon steel
performance	High bearing, anti-skid, anti-corrosion and convenient installation
transportation	overseas shipping
standard	iso9001:2015
orgin	Anping Hengshui China
Maximum length of step (mm)	550,850,1350
Flat steel profile (mm * mm)	25 * 5,32 * 5,40 * 5
Cross bar spacing (mm)	10
Pedal width (mm)	155,215,275

Flat steel spacing(mm):60

Performance and application scenario of T2 flat steel 40mm spacing hot-dip galvanized steel grating steps

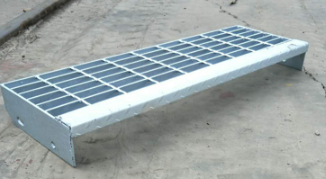

Safety Hot Dip Galvanized Steel Grated Metal Stair Treads
The steel ladder step plate is installed with bolts, which is convenient for installation and disassembly, and has good bearing performance. The surface is hot-dip galvanized process, which can resist weak acid, weak alkali and oxygen oxidation and increase its service life. In addition, the shape design of the grid mesh makes it possible to avoid accumulation in rainy and snowy weather, avoid manual maintenance and save costs.

Error control of step steel grating plate with spacing of T2 40mm flat steel

Safety Hot Dip Galvanized Steel Grated Metal Stair Treads
According to the regulations, the allowable width error of steel ladder step plate is - 3mm to 3mm, the length constraint is 0-3mm, and the welding joint between front guard plate and edge and each loaded flat steel is fillet welding greater than or equal to 3mm.
